W123 Station Wagons

230T/TE, 240TD, 250T,
280TE & 300TD/TD-Turbo
(1978 - 1985)

close [x]

W123 Station Wagons « Mercedes-Benz « Home

Questions? Call (805) 921-0100 or (800) 222-9577, Monday - Friday, 8 am to 5 pm PST. Click to e-mail us anytime!


Select Car to Show Available Products:

-


Seat Kits Seat Pads Carpet Sets Headliners Dash Floor Mats

SEAT UPHOLSTERY KITS
----------------------------------------------------------------

Upholstery FAQs - Material Sample Colors

Most W123 wagons were originally upholstered in either MB-Tex vinyl or German leather. We have most of the factory colors for both materials which we can use to manufacture the seat kits. Some European models used cloth/velour but we only have a limited selection of this material.

Our seat kits will be delivered to you pre-sewn and can be installed by an amateur restorer but they are still more appropriate in the hands of a professional installer. The reasons being, no instructions are included (since they are manufactured when ordered and not mass produced) and any installation of seat covers requires removal of the old seat covers. Also, most old seat pads will either require replacement or re-building/re-padding which also requires an installer.

If you want something unique, we also offer Sheepskin Seat Covers!

E-mail us or Call 1-800-222-9577 to order or for more info

FRONT SEAT

Our front seat kits include pre-sewn backrest, cushion, headrest and back panel covers for both seats. The covers for the optional armrest and are sold separately. We do recommend ordering all the covers at the same time for a perfect color match. Before 1983, W123 front seats that were originally covered in MB-Tex had 5 pleats while those in leather had 6 pleats. In 1983, all seats now had 6 pleats. All kits are available in both MB-Tex and Leather. MB-Tex kits are heat sealed while Leather kits will have double-stitching. Early models had 'Rossette' embossings while late ones had 'Pin-point'.

Part # 123-3648: '78-'79 W123 Wagon, 5-pleat, Vinyl
Part # 123-3668: '80-'82 W123 Wagon, 5-pleat, Vinyl
Part # 123-3848: '83-'85 W123 Wagon, 6-pleat, Vinyl
Part # 123-3948: '78-'82 W123 Wagon, 6-pleat, Leather
Part # 123-3845: '83-'85 W123 Wagon, 6-pleat, Leather

The armrest covers are sold separately!

E-mail us or Call 1-800-222-9577 to Order

Mercedes W123 Wagon Front Seat

REAR SEAT

Rear seat kits would include the backrest, cushion and center armrest cover. It does not include any headrest covers. Like the front seats, those seats that orignally had MB-Tex had a different number of pleats as those originally in Leather. Also like the front seats, early models had 'Rossette' embossings while late ones had 'Pin-point'.

Part # 123-3227: '78-'79 W123 Wagon, 7-pleat/side, Vinyl
Part # 123-3238: '80-'82 W123 Wagon, 7-pleat/side, Vinyl
Part # 123-3248: '83-'85 W123 Wagon, 7-pleat/side, Vinyl
Part # 123-3258: '78-'85 W123 Wagon, 8-pleat/side, Leather

The headrest covers are sold separately!

E-mail us or Call 1-800-222-9577 to Order

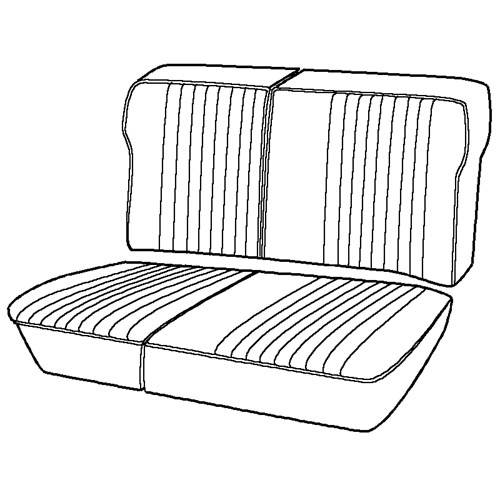

Mercedes W123 Wagon Rear Seat

Return to Top


SEAT PADS

Seat Pads are what gives the seats their shape. For the seat cover to look and feel exactly like the original, the seat pad must also be the same as the original. Since seat pads are also susceptible to wear, tear and shrinkage, they may require replacement or at least be re-built by an installer.

W123 seat pads are different depending on what the original upholstery was. It means that if you originally had MB-Tex vinyl, your seat pad would be different from someone who originally had Leather. Also, some of the late Turbo Diesels had slightly different seat pads.

E-mail us or Call 1-800-222-9577 to check for availability!

SEAT PADS

Part # 123-3816: '76-'82 Front Backrest Pad, Vinyl
Part # 123-7214: '83-'85 Front Backrest Pad, Vinyl
Part # 123-0315: '76-'82 Front Backrest Pad, Leather
Part # 123-7916: '83-'85 Front Backrest Pad, Leather
Part # 123-0249: '76-'85 Front Cushion Pad, All
Part # 123-1309: '76-'82 LH Rear Backrest Pad, All
Part # 123-1409: '76-'82 RH Rear Backrest Pad, All
Part # 123-1515: '83-'85 LH Rear Backrest Pad, All
Part # 123-1615: '83-'85 RH Rear Backrest Pad, All
Part # 123-1750: '76-'82 LH Rear Cushion Pad, All
Part # 123-1849: '76-'82 RH Rear Cushion Pad, All
Part # 123-2350: '83-'85 LH Rear Cushion Pad, All
Part # 123-2450: '83-'85 RH Rear Cushion Pad, All
Part # 123-1660: '76-'79 Headrest Pad
Part # 123-1670: '80-'85 Headrest Pad

The upholstery after the name of the pad indicates
what the original for that pad was.

E-mail us or Call 1-800-222-9577 to Order

Mercedes W116 Cushion Seat Pads

Return to Top


CARPET SETS
----------------------------------------------------------------

Carpet FAQs - Material Sample Colors

The W123 wagon's carpeted area is the same for all models except for one area, the spare tire. There are two types of spare tire covers: the round type and the flat, longer type. Wagon carpet is available only in Feintuft Velour since loop-type carpets are hard to fiti n the rear area. The carpet set includes both the front and rear passenger area as well as the rear compartment area. Carpet under padding are not included. The original padding is no longer available. A more modern jute padding can be used to replace it and can be bought separately.

E-mail us or Call 1-800-222-9577 to order or for more info

CARPET SET
1978-1985 W123 Station Wagons

Part # 123-0560: Full Carpet Set
Part # 123-0562: Rear Compartment Carpet

Please indicate if you have the round or flat type spare cover.

E-mail us or Call 1-800-222-9577 to Order

Return to Top


HEADLINERS

All perforated vinyl factory colors are available for W123 headliners.

E-mail us or Call 1-800-222-9577 to order or for more info

HEADLINER

Part # 123-5052: W123 Wagons, no Sunroof
Part # 123-4730: W123 Wagons, w/ Sunroof

Made of perforated vinyl.

E-mail us or Call 1-800-222-9577 to Order

Mercedes W123 Headliner

Return to Top


DASH ACCESSORIES

W123 dash caps were originally of a molded construction.

E-mail us or Call 1-800-222-9577 to order or for more info

DASH CAP

Part # 123-7631: W123 Wagons, no Clmate Sensor
Part # 123-7632: W123 Wagons, w/ Climate Sensor

The dash cap already comes with adhesive for easy installation. Comes in black but can be sprayed with dye to match your interior.

E-mail us or Call 1-800-222-9577 to Order

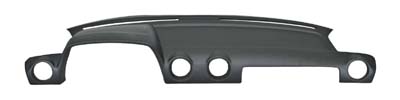

Mercedes W123 Dash Cap

Return to Top


FLOOR MATS

E-mail us or Call 1-800-222-9577 to order or for more info

PLUSH CARPET FLOOR MATS

Protect your expensive carpet with these heavy, Ansew II, easily cleaned overmats.

- Custom made specifically for your car!
- Your choice of Plain or Monogrammed Mats!
- Personalize it with your name on the mat!

Click Here For More Details

Carpet Floor Mats

COCO MATS

For the nostalgia buff, we can now supply 1950s style two-tone coco mats. The newly designed mats now have a non slip rubber backing which traps dirt and moisture. They may be hosed off for easy clean up.

Click Here For More Details

Coco Mats

Return to Top
