The Mercedes-Benz W113 was a 2-seater convertible that replaced 2 legends: the 190SL and 300sl. They
were produced from 1963 to 1971 and is usually referred to as the "Pagoda" due to the distinct shape
of the hard-top. A little under half of them were sold in the United States and even
had a 4-seater version called the "California Coupe". The area were the soft-top is was replaced by
a bench seat instead. Models include: 230SL, 250SL, and the 280SL.
The W113 was among the first to make the Mercedes Texturized (MB-Tex) Vinyl as
standard upholstery. It was vinyl, thus less expensive, but had the feel
of leather. Leather became optional. We can manufacture interior kits in both
the original MB-Tex and German Leather.
Our complete interior kits include matching upholstery for both front seats, the
interior panels (door panels, front kick panels & rear quarter panels), the 4-pc windlace and the convertible top container
lid. It also includes raw upholstery (either 2.5 yards of MB-Tex or half a hide of
Leather) to trim other parts of the interior like the dash, sunvisors & other misc.
trimmings. A complete carpet set, made of Import Loop, is also included as well as the
door and front kick panel boards.
Special Notes:
- The 230SL and early 250SL (1963-1967) originally
was carpeted in Squareweave. Only after 1967 did Mercedes shift to Import Loop.
Our complete interior kit includes the Import Loop Carpet Set no matter what year.
You may upgrade to Squareweave carpet but it will cost extra.
- The front floors
of the very early 230SL (1963) had rubber mats instead of carpet. If you want rubber
mats, it will also cost extra.
- The small seat pads for the early W113s (1963-1967) have been
discontinued for a long time. Many restorers have simply replaced the small seat pad
with the larger one since they are interchangable. If you are going to replace the small
seat pads with the larger one or if they've already been replaced, then tell us so we
can give you the correct seat kit.

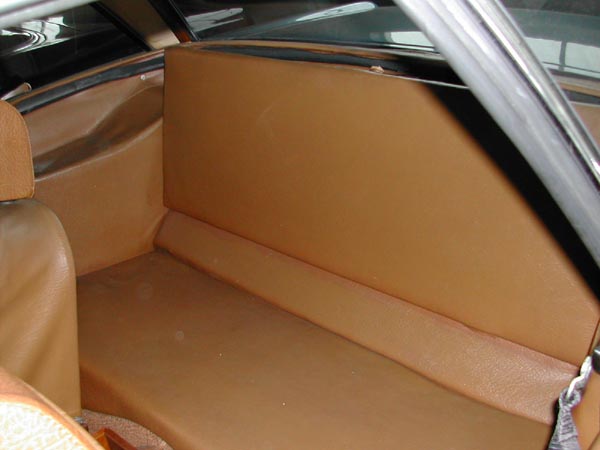

- The "California Coupe" is a unique type of W113 that has a rear bench seat in place of
the soft-top container. We currently do not have a complete interior kit for that car.
E-mail us or Call
1-800-222-9577 to order if any of these factors affect your car.
Important: Around 1969, headrests were added and later that
year, the pleats on the end of the cushion was pinched. Look at the illustrations
below to see which is appropriate for your seat.
COMPLETE INTERIOR KITS
Part # 113-3572-2: Vinyl Interior Kit
W113 Roadsters (SL-Class)
Price: $ 2,500.00
Part # 113-3572-3: Leather Interior Kit
W113 Roadsters (SL-Class)
These seat kits are manufactured in California and are sewn using the original style and
dimensions. This is important to note because the seat pads underneath the upholstery
is also susceptible to wear, tear and shrinkage and thus your old seat pad might not fit.
We recommend professional installers
to rebuild your horsehair pads to regain the feel of the original seat.

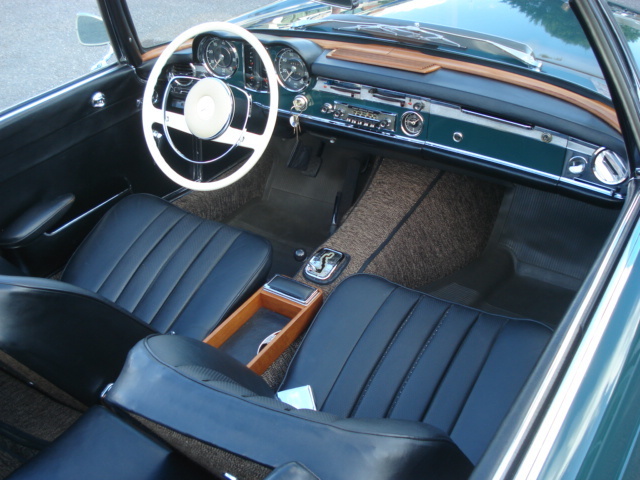

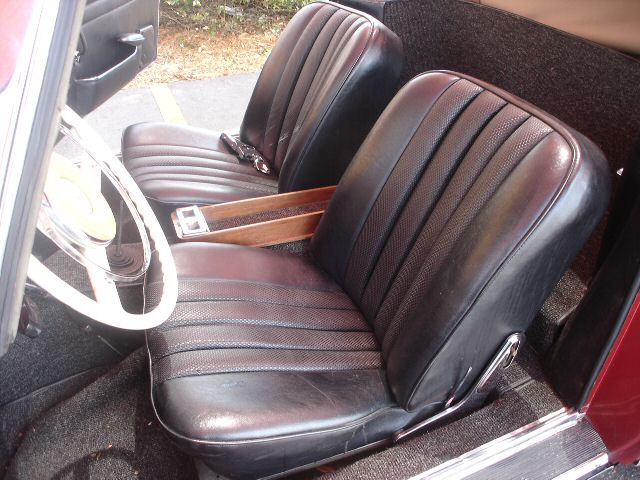

Note: The early version (1963-1965) of the W113 seats are
smaller than the later ones. The seat pads for the small seats are no longer
available. The larger seat pads can be used to replace the small seat pads but this
also means you have to use the upholstery meant for the larger seat pads.
The standard W113 model was released as a 2-seat Roadster with both the
"Pagoda"-style hardtop and a convertible softtop. Nonetheless, two options
made provisions for rear seat passengers: the side-facing jump seat
and the "California Coupe" wherein they removed the softtop and used the
area to install a large folding bench-type of rear seat.
We can manufacture kits to re-trim both options but no pads/hadware are
available.
The early W113 (1963-1965) seat pads has been discontinued for quite some time.
You can either have an installer rebuild your old pads or you can replace them
with the late W113 (1965-1971) seat pad which is larger but usable because they
use the same seat frame. Just make sure you also use the appropriate seat upholstery
if you decide to switch your seat pads.
E-mail
us or Call 1-800-222-9577 to order or for more info
FRONT SEAT PADS
1965-1971 W113 Roadsters (SL-Class)
Part # 113-4116: Backrest Pad
Used in both left and right seats
Price: $ 395.00 / pad
Part # 113-4313: Left Cushion Pad
Price: $ 395.00 / pad
Part # 113-4414: Right Cushion Pad
Price: $ 395.00 / pad
FRONT HEADREST PADS
1969-1971 W113 Roadsters (SL-Class)

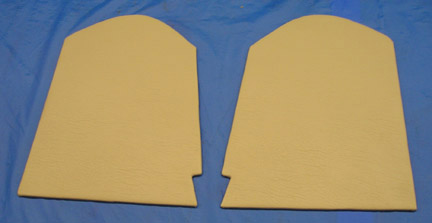

Like the seats, the interior panels (door, font kick & rear quarter) are
covered in either MB-Tex (standard) or Leather (optional). Most W113 models
came with the "hard-pocket" version of the door panels but late North
American models had the "soft-pocket" version. There is some confusion as to
whether the "soft-pocket" version is limited to NA models so the best
solution is to look at your old door panels and see which version is
appropriate for your car.
Special Note: There is some issue with the rear
quarter panel for the 230SL. The standard rear quarter panel stops well
before the handle in the rear wall while some rare 230SLs have the rear
panel go all the way beyond the handle. Please inform us if you have the
rare version.
E-mail
us or Call 1-800-222-9577 to order or for more info
DOOR & REAR PANEL KITS
1963-1971 W113 Roadsters (SL-Class)

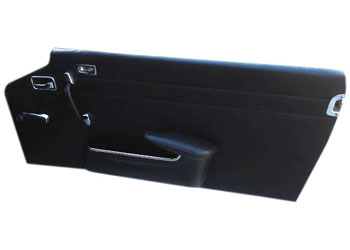

"Hard Pocket" Version
Part # 113-0361-2: Vinyl Kit
This kit includes both the left and right panels.

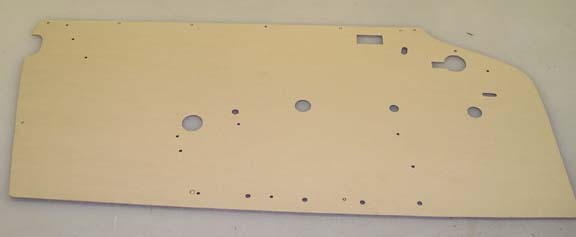

Includes the panel boards w/ heat-sealed cover,
hard-pocket covers, armrest covers and the rear
panel covers. No other hardware included!
Price: $ 595.00
Part # 113-0361-3: Leather Kit
This kit includes both the left and right panels.
Includes the panel boards w/ heat-sealed cover,
hard-pocket covers, armrest covers and the rear
panel covers. No other hardware included!
Price: $ 995.00
DOOR & REAR PANEL KITS
1963-1971 W113 Roadsters (SL-Class)

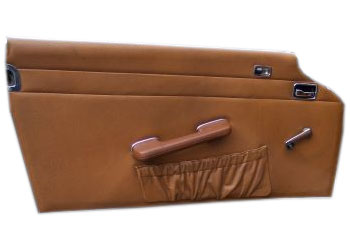

"Soft-Pocket" Version
Part # 113-0461-2: Vinyl Kit
This kit includes both the left and right panels.
Includes the panel boards w/ heat-sealed cover,
soft-pocket covers and the rear
panel covers. No other hardware included!
Price: $ 595.00
Part # 113-0461-3: Leather Kit
This kit includes both the left and right panels.
Includes the panel boards w/ heat-sealed cover,
soft-pocket covers and the rear
panel covers. No other hardware included!
Price: $ 995.00
REAR PANEL KITS
1963-1971 W113 (Standard) 1963-1965 230SL (Rare)
Sold per side or by pairs
The standard rear panel cover is shorter than
the rare version seen in some 230SLs
Available in MB-Tex or Leather
Black, die-cut, vinyl-coated and made of jute
Located inside the engine compartment
Price: $ 225.00

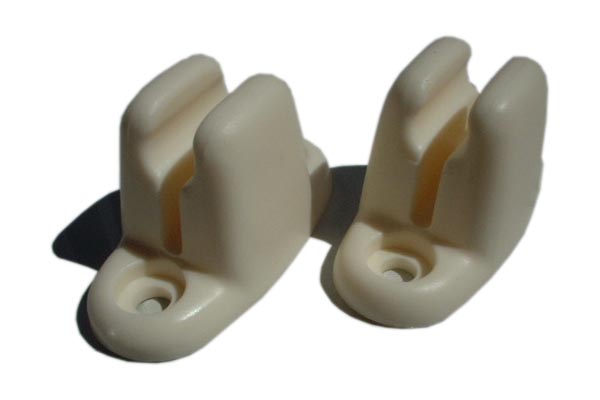

OEM SUNVISOR CLIP
Part # 113-0230: 1963-1966 230SL & 250SL
Replacement clips for #113-0595 sunvisors.
Sold per clip!
Price: $ 50.00 per clip
OEM SUNVISOR CLIP
Part # 113-0240: 1967-1971 250SL & 280SL
Replacement clips for OEM sunvisors.
Sold per clip!
Price: $ 100.00 per clip
Matching MB-Tex Vinyl or German Leather can be ordered by the yard
or by the square foot for any miscellaneous trimming that you may need. There
are a number of upholstered areas in the car (like the dash) that only needs
raw upholstery and a professional installer. Just tell us the specific area
and we can give you an approximate of how much material you will need.
E-mail
us or Call 1-800-222-9577 to order or for more info
Just like the 190SL, early W113 models like the 230SL and 250SL used
Squareweave for carpeting. It wasn't until the middle of 1967 that
they switched to Import Loop.
All the carpet sets sold below assume
that you don't have an air conditioner, no rear jump seat and not a
California Coupe. If any of these factors affect your car then you
have to order by phone. Also, very early 230SL originally had
rubber mats on the front floors. If you want a mix of OEM rubber mats
and the remaining carpet then you have to order by phone.
E-mail
us or Call 1-800-222-9577 to order or for more info

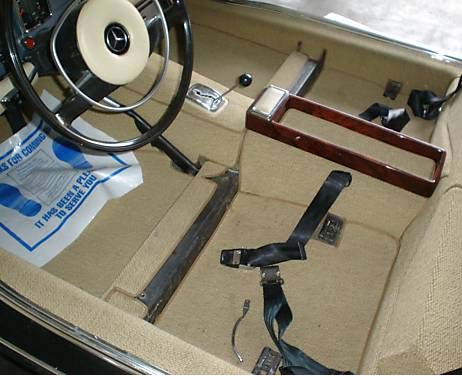

CARPET SET
1963-1971 W113 (Stick Shift)
Part # 113-0194-2: Import Loop
Made of Import Loop
Price: $ 825.00
Part # 113-0194-4: Squareweave
Made of Squareweave
Price: $ 1,095.00
CARPET SET
1963-1971 W113 (Automatic Shift)
Part # 113-0166-2: Import Loop
Made of Import Loop
Price: $ 825.00
Part # 113-0166-4: Squareweave
Made of Squareweave
Price: $ 1,095.00
FLOOR RUBBER MATS
1963-1965 250SL
Part # 113-0519: Driver Side Mat Part # 113-0520: Passenger Side Mat
All W113 cars came with the "Pagoda"-style hardtop and a soft-top. The exception
is the California Coupe whose soft-top was replaced with a bench seat.
The softtop originally came as German Canvas with a Tan Herringbone inner
surface. The German Canvas is very difficult to install for this particular
model because of lack of stretch. Most proffesional installers prefer either
the American Stayfast Canvas or the Sonnendeck Canvas (a version of Stayfast that uses the
German cloth backing). All three materials are very similar in appearance and
we do offer all of them. Professional installation is highly recommended.
The headliner for the hardtop is made of Perforated Vinyl.
E-mail
us or Call 1-800-222-9577 to order or for more info
CONVERTIBLE TOPS
1963-1971 W113 Roadsters
Part # 113-3039-2: Stayfast Canvas
Made of Stayfast Canvas
Price: $ 850.00
Part # 113-3039-3: Sonnendeck Canvas
Made of Sonnendeck Canvas
Price: $ 925.00
Part # 113-3039-4: German Canvas
Made of German Canvas
Price: $ 1,075.00
TOP SIDE CABLES, PAIR
Part # 113-2195: 1963-1971 W113 Roadsters
Price: $ 20.00 / pair
TOP STRAPS, PAIR
Part # 113-3056: 1963-1971 W113 Roadsters
Currently Unavailable
TOP LID INSERT
1963-1971 W113 Roadsters
Part # 113-2553-2: Vinyl Top Lid Insert
Upholstery covering the top lid.
The top lid covers the top storage area.
Price: $ 90.00
Part # 113-2553-3: Leather Top Lid Insert
Upholstery covering the top lid.
The top lid covers the top storage area.
We can supply the original German rubber seals which are a bit softer
than our reproduced seals. But for the budget conscious, our
reproduction rubber seals are more than sufficient.
E-mail
us or Call 1-800-222-9577 to order individual rubber seals
Part # 113-2200-4: Repaint Rubber Seal Kit
1963-1971 W113 Roadsters
Made of OEM German Rubber
This seal kit contains all the rubber pieces you will need to replace
when re-painting your W113. It includes:
- Front Windshield Seal (113-0101-4)
- Rubber Insert for Side Chrome Trim (113-0140-4)
- Door Surround Seals (113-0108/0109-4)
- Door Handle Pads (113-0146-4)
- Door Sill Mats (113-2294/2394-4)
- Side Mirror Base Pad (113-0144/0145-4)
- Soft-top Seal Kit (113-2100-4)
- Soft-top Lid Seal (113-0107-4)
- Trunk Seal (113-0100-4)
- Trunk Handle Seal (113-0141-4)
- Trunk Lock Seal (113-0147-4)
- Gas Filler Seal (113-2027-4)
Price: $ 2,595.00
E-mail
us or Call 1-800-222-9577 to order individual rubber seals
Part # 113-2200-4R: Repaint Rubber Seal Kit
1963-1971 W113 Roadsters
Made of Local Reproduction Rubber
This seal kit contains all the rubber pieces you will need to replace
when re-painting your W113. It includes:
- Front Windshield Seal (113-0101-4R)
- Rubber Insert for Side Chrome Trim (113-0140-4R)
- Door Surround Seals (113-0108/0109-4R)
- Door Handle Pads (113-0146-4R)
- Door Sill Mats (113-2294/2394-4R)
- Side Mirror Base Pad (113-0144/0145-4R)
- Soft-top Seal Kit (113-2100-4R)
- Soft-top Lid Seal (113-0107-4R)
- Trunk Seal (113-0100-4R)
- Trunk Handle Seal (113-0141-4R)
- Trunk Lock Seal (113-0147-4R)
- Gas Filler Seal (113-2027-4R)
Price: $ 1,195.00
E-mail
us or Call 1-800-222-9577 to order individual rubber seals

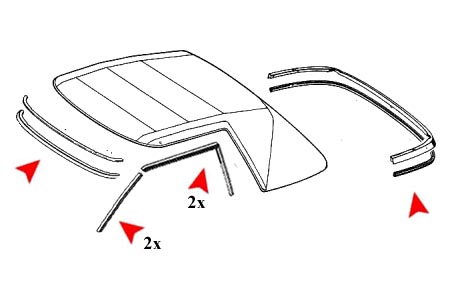

Soft-Top Seal Kit
1963-1971 W113 Roadsters
Part # 113-2100-4: OEM Rubber
Made of OEM Rubber. Includes:
- Top to Windshield Seal (113-0098-4)
- Top to Rear Deck Seal (113-0099-4)
- Top to Left Glass Seal (113-0104-4)
- Top to Right Glass Seal (113-0105-4)
- A-Post Seal x2 (113-0106-4)
Price: $ 750.00
Part # 113-2100-4R: Reproduction Rubber
Made of Reproduction Rubber. Includes:
- Top to Windshield Seal (113-0098-4R)
- Top to Rear Deck Seal (113-0099-4R)
- Top to Left Glass Seal (113-0104-4R)
- Top to Right Glass Seal (113-0105-4R)
- A-Post Seal x2 (113-0106-4R)
Price: $ 350.00
Hardtop Seal Kit
1963-1971 W113 Roadsters
Part # 113-2300-4: OEM Rubber
Made of OEM Rubber. Includes:
- Top to Windshield Seal (113-0098-4)
- Top to Rear Deck Seal (113-0377/0094-4)
- Rear Windshield Seal (113-0039-4)
- Left 1/4 Window Seal (113-0139-4)
- Right 1/4 Window Seal (113-0239-4)
- Top to Left Glass Seal (113-0104-4)
- Top to Right Glass Seal (113-0105-4)
Price: $ 1,495.00
Part # 113-2300-4R: Reproduction Rubber
Made of OEM Reproduction. Includes:
- Top to Windshield Seal (113-0098-4R)
- Top to Rear Deck Seal (113-0377/0094-4R)
- Rear Windshield Seal (113-0039-4R)
- Left 1/4 Window Seal (113-0139-4R)
- Right 1/4 Window Seal (113-0239-4R)
- Top to Left Glass Seal (113-0104-4R)
- Top to Right Glass Seal (113-0105-4R)
For the nostalgia buff, we can now supply 1950s style two-tone coco mats.
The newly designed mats now have a non slip rubber backing which traps
dirt and moisture. They may be hosed off for easy clean up.
www.worlduph.com is a registered trademark.
Any copying or reproduction of any kind must be approved by a written contract.
This website is maintained by
World Upholstery & Trim Webmaster
Terminologies:
Over the years, different terminologies have been used for the same parts. To minimize
confusion we've collected many of the different names to give customers
some reference to the different Alfa Romeo, Mercedes-Benz, BMW, Porsche,
Ferrari, Fiat and Jaguar trim parts that vary in terminology around the world.
