Carpet Sets

Imported Carpet Material from Europe, Factory Style Heel Pads and Patterns Taken from Original Factory Carpet.
Restore your Carpet to its Original Look!

close [x]

Carpet Sets « 105 & 115 Series Spiders « Alfa Romeo « Home

Winter Sale is Still On! Use Coupon Code "WINTER10" to get 10% Discount on Online Orders Over $500!

Questions? Call (805) 921-0100 or (800) 222-9577, Monday - Friday, 8 am to 5 pm PST. Click to e-mail us anytime!


Select Car to Show Available Products:

-

Alfa Romeo Spider (1966-1994)

Complete Interiors Seat Kits Carpet Sets
Convertible Tops Rubber Seals Panels & Other Trim

Carpet Sets, Rubber Mats and Other Floor Covers

Carpet Sets Rubber Mats Supplements Vinyl Mats

World Upholstery & Trim manufactures "cut and bound" carpet sets to replace the original carpet in your 105 & 115 Series Spider. A "cut and bound" carpet set is carpet material cut to the pattern of the original layout with ease of installation in mind. The visible edges of the carpet are bound in matching or contrasting vinyl for visual appeal once installed. We these carpet sets using imported carpet material or a more economical domestic carpet. As with any upholstery project, some trimming may be required and while this can easily be installed by an amateur restorer, we still recommend professional installers.

Cut and Bound Carpet

Carpet F.A.Q.s

Early Duetto Spiders (1966-1970) came with rubber mats and little to no carpet; the only area carpeted was two pieces on the drive shaft and transmission tunnel. Series II Spiders had no carpeting and the floors were completely covered in rubber mats. World Upholstery offers replacement rubber mats that are replicas of the originals for damaged or missing rubber mats. If you dislike rubber mats or you're looking for a budget-friendly alternative, we also offer carpet replacements for rubber mats otherwise referred to as a carpet supplement. Carpet supplements replace all the rubber mats with carpet giving your car a luxurious feel. We also offer replacements for the vinyl mats covering the rear area behind the front seats.

Call (805) 921-0100 or e-mail us so we can discuss the parts that you need.


Carpet Sets

Interior Carpet Sets

Product # 175-5606
1600 Duetto
1750 Veloce, 1300 Junior
2-pc Carpet Set
(1966 - 1970)

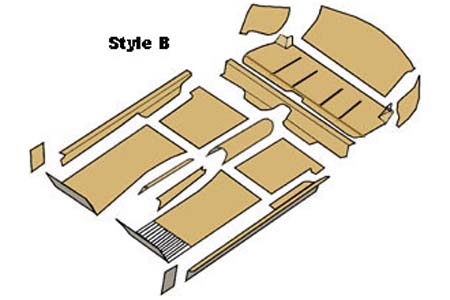

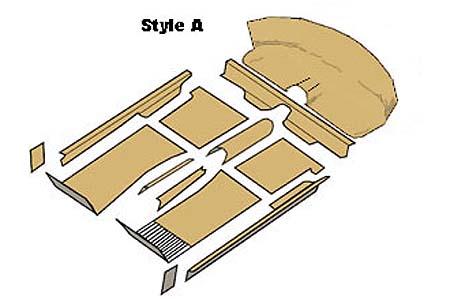

Alfa Romeo Spider (105 Series) Carpet Style A Alfa Romeo Spider (105 Series) Carpet Style B

Product # 175-7605
Style A
No Rear Hump
14-pc Carpet Set
(1978 - 1987)

Product # 175-9606
Style A
With Rear Hump
15-pc Carpet Set
(1978 - 1994)

Product # 175-7606
Style B
Manual Transmission
18-pc Carpet Set
(1978 - 1994)

Product # 175-9607
Style B
Automatic Transmission
18-pc Carpet Set
(1986 - 1994)

Trunk Carpet Sets

Alfa Romeo Spider (105 Series) Trunk Carpet

Trunk Carpet
Product # 175-7708
1600 Duetto
1750 Veloce, 1300 Junior
(1966 - 1970)

Trunk Carpet
Product # 175-7808
1750 & 2000 Veloce
1300 & 1600 Junior
(1970 - 1978)

Trunk Carpet
Product # 175-7809
2000 Veloce, 1600 Junior
Aerodinamica, Type 4
(1978 - 1994)


Color Samples
Domestic Cut Pile     Domestic Nylon Loop     English Wool     German Velour

Call (805) 921-0100 or e-mail us to order or to get more info!


Our cut and bound carpet sets include all the carpet pieces necessary to completely replace the original carpet in your 105/115 Spider. They are designed for easy installation with vinyl binding on the visible edges. The original material is Italian wool and expensive, so depending on the amount of carpet needed it could be pricey. As an alternative option we offer the following materials:
   a.) Wilton Wool or Feintuft Velour (alternative imported material)
   b.) Domestic Cut Pile or Nylon Loop (alternative American material)

Very early (1966-1970) 105 Spiders only had 2-pcs of carpet on the drive shaft and transmission tunnel and rest of the floor was covered in rubber mats and vinyl mats. The introduction of the "Kamm-tail" Spiders in 1970 added a plastic center console over the transmission area leaving only rubber mats and vinyl. World Upholstery offers carpet supplements as an alternative to rubber mats. In 1978 molded carpet replaced all rubber and vinyl mats and unfortunately is no longer available. We instead offer cut and bound carpet sets. The best way to identify which carpet set you need is to take a picture of the entire rear area behind the seats of your Spider and e-mail it to support@worlduph.com (make sure to properly reference your e-mail so that the salesperson will know what to do with it).

Much like the interior of the car, the trunk area was covered in rubber mats until 1978 when they were replaced by carpet. World Upholstery & Trim offers replacement trunk carpet sets for all 105 & 115 Spiders from 1966 to 1994. For Spiders that originally had rubber mats (1966-1978), the pattern is the same as the rubber mats but cut out of carpet material and bound in vinyl. The early set (1966-1970) fits any long-tailed Spider also known as "Osso di Seppia". The intermediate set (1970-1978) fits "Kamm-tailed" Spiders that originally had trunk rubber mats. The later set (1978-1994) is a cut and bound version of the molded carpet sets found in later trunks.

Carpet sets can easily be installed by an amateur restorer, but due to factors like complete removal of the seats and removal of the old carpet, we strongly recommend the use of professional installers. Our carpet sets are "made-to-order", we do not keep them in stock and our typical lead time for production is 7-10 business days. Make sure to add shipping time when calculating the number of days it will take for your carpet set to reach you.

Return to Top


Rubber Mats

Interior Rubber Mats

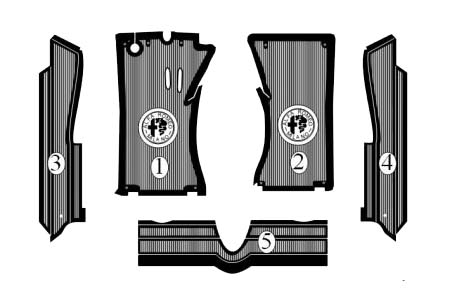

Alfa Romeo Spider (1966-1970) Rubber Mats   Alfa Romeo Spider (1970-1978) Rubber Mats

Product # 175-5616
1600 Duetto
1750 Veloce, 1300 Junior
(1966 - 1970)

Product # 175-6616
1750 & 2000 Veloce
1300 & 1600 Junior
(1970 - 1978)

Trunk Rubber Mats

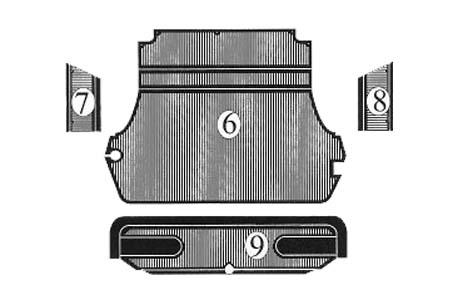

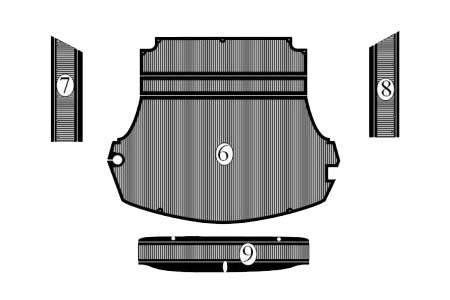

Alfa Romeo Spider (1966-1970) Trunk Rubber Mats   Alfa Romeo Spider (1970-1978) Trunk Rubber Mats

Product # 175-7707
1600 Duetto
1750 Veloce, 1300 Junior
(1966 - 1970)

Product # 175-7807
1750 & 2000 Veloce
1300 & 1600 Junior
(1970 - 1978)


Call (805) 921-0100 or e-mail us to order or to get more info!


World Upholstery & Trim offers a rubber mat set that replaces the missing or damaged rubber mats found in your 105 & 115 Series Spider. The interior rubber mats sets are sold separately from the trunk rubber mat sets, these replacement rubber mat sets are authentic looking reproductions of the original mats.

The mats with vertical lines in the rear area behind the seats are vinyl mats not rubber. The early set of rubber mats (1966-1970) fits all long-tailed versions of the Spider also known as "Osso di Seppia" while the later set of rubber mats fits the Kamm-tailed Spiders up to 1978 (1970-1978).

We also offer carpet supplements for all of these rubber mats.

Return to Top


Carpet Replacements for Rubber Mats

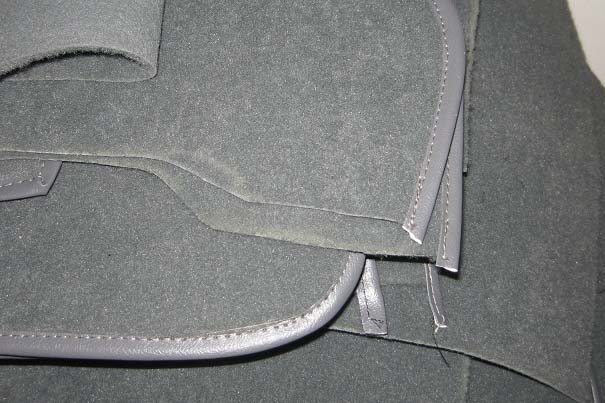

Alfa Romeo Spider (1966-1970) Carpet Supplement

Product # 175-6626
1600 Duetto
1750 Veloce, 1300 Junior
(1966 - 1970)

Product # 175-6606
1750 & 2000 Veloce
1300 & 1600 Junior
(1970 - 1978)


Color Samples
Domestic Cut Pile     Domestic Nylon Loop     English Wool     German Velour     Italian Wool

Call (805) 921-0100 or e-mail us to order or to get more info!


Carpet replacements or supplements are carpet material cut into the same pattern as the rubber mats. If restoring your car to it's original interior isn't your priority but style and comfort are, our carpet supplement is what you're looking for. World Upholstery & Trim offers carpet supplements for the 5-pc interior rubber mat set for 1966 to 1970 Spiders and a separate carpet set to replace the interior rubber mats of 1970 to 1978 Spiders. These carpet sets can be manufactured using the following materials:
   a.) Wilton Wool or Feintuft Velour (alternative imported material)
   b.) Domestic Cut Pile or Nylon Loop (alternative American material).

Return to Top


Rear Vinyl Mats

Alfa Romeo Spider (1966-1970) Rear Vinyl Mat

Product # 175-2760: Rear Wall Vinyl Mat          (1966 - 1978)
Product # 175-3740: Rear Side Panel Vinyl Mat (1966 - 1970)
Product # 175-3840: Rear Side Panel Vinyl Mat (1971 - 1978)


Call (805) 921-0100 or e-mail us to order or to get more info!


Before the Spiders were completely carpeted in 1978, the rear area behind the seat was covered in 3 pieces of vinyl mat: one big piece for the real wall (rear wall vinyl mat) and a smaller piece on both sides (rear side panel vinyl mat, pair). World Upholstery & Trim produces them using either imported vinyl or a more economical domestic vinyl, the original vinyl is no longer available. Instead of being heat-sealed like the originals, our mats are sewn to create the same effect.
